Jasmine is a 1969 MGBGT. She is a street legal race car, although "race legal street car" is a more accurate description. She has the following features and modifications:

Safety and comfort:
Rollcage

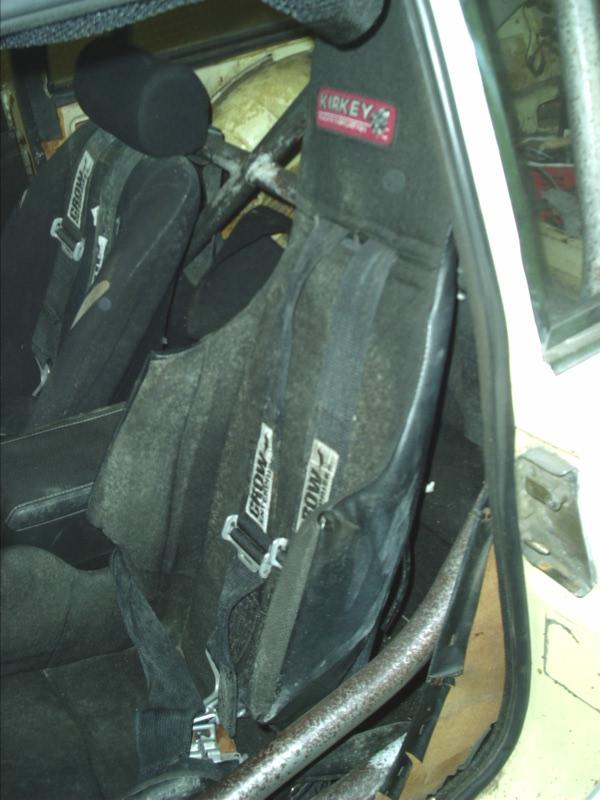

Kirkey Drivers Seat
Corbeau Passenger Seat
5 point crow racing belts
window net
Fire Extinguisher
Hi-tech composite visor

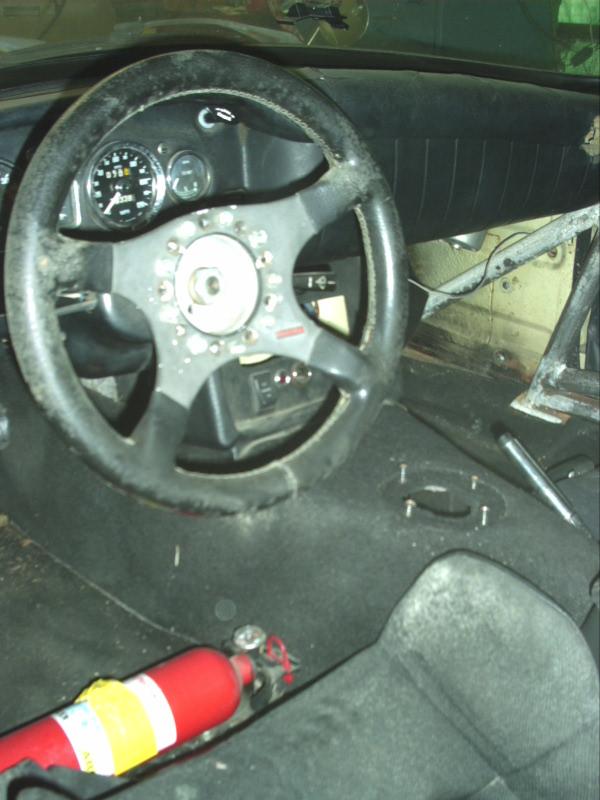

Steering wheel
roll cage padding
seat brace
New windsheild

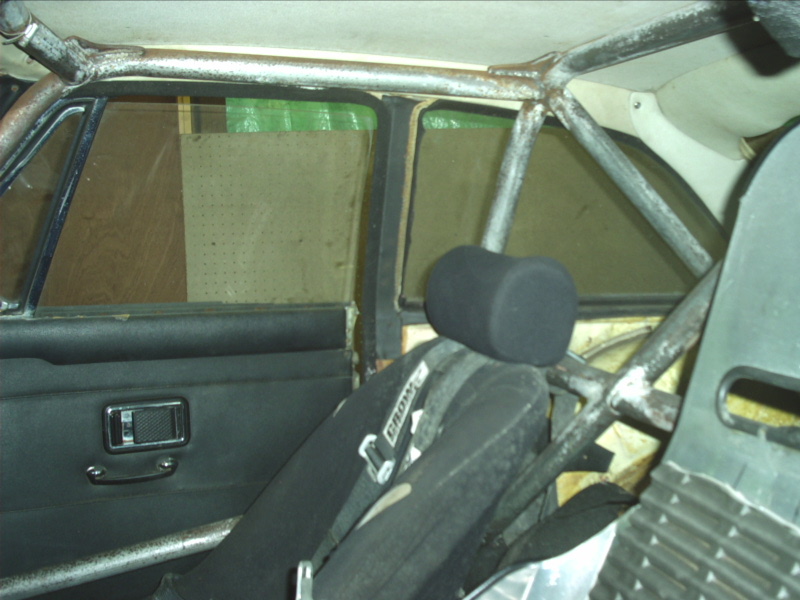

Roll cage

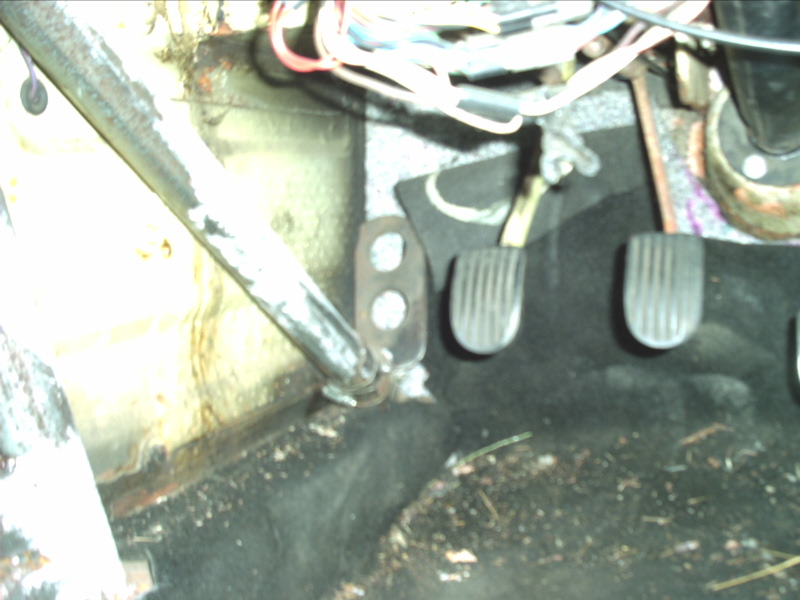

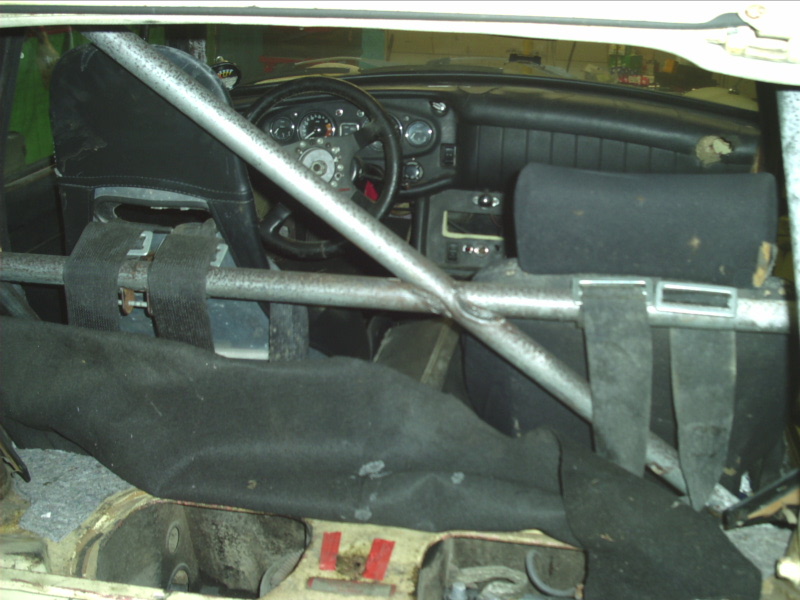

[ cage01T.jpg ] [ crossbrace01T.jpg ] [ deadped01T.jpg ]

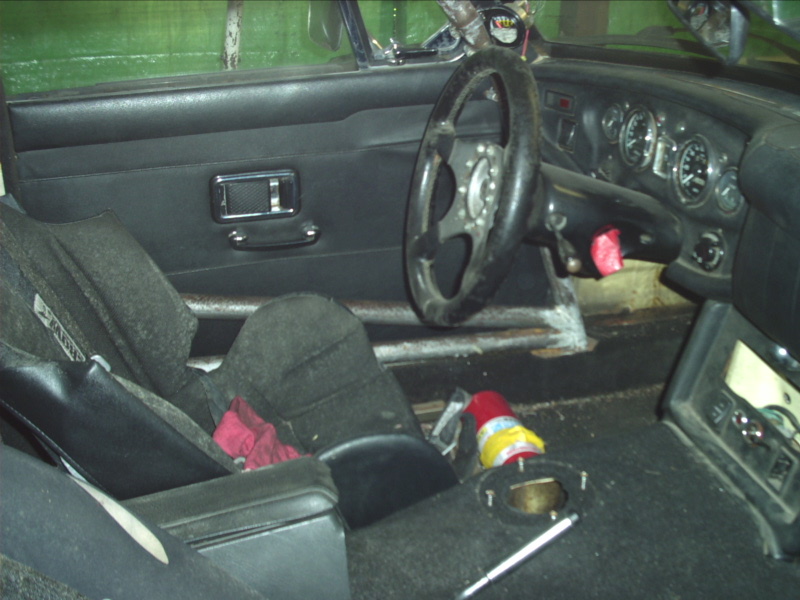

[ dside00T.jpg ] [ swheelT.jpg ] [ fbraceT.jpg ]

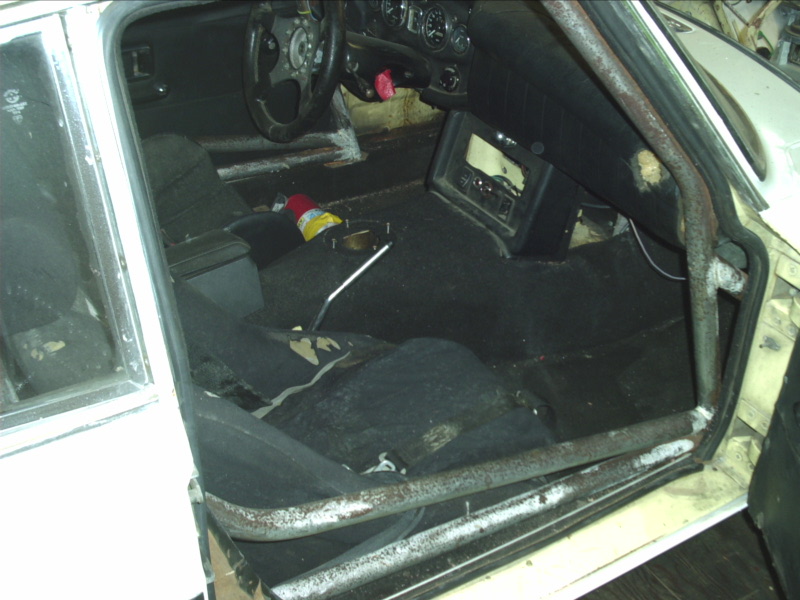

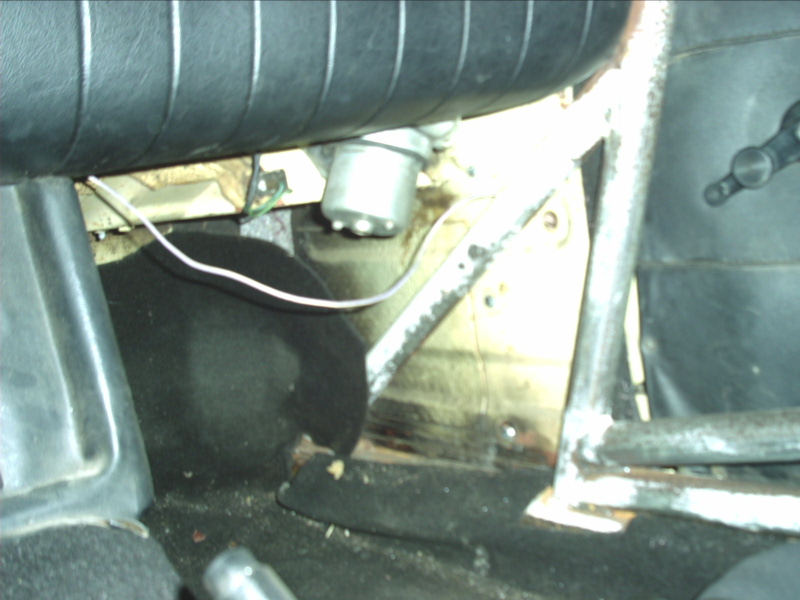

[ kirkey01T.jpg ] [ passftwell01T.jpg ] [ sidebars01T.jpg ]
drivers door bar

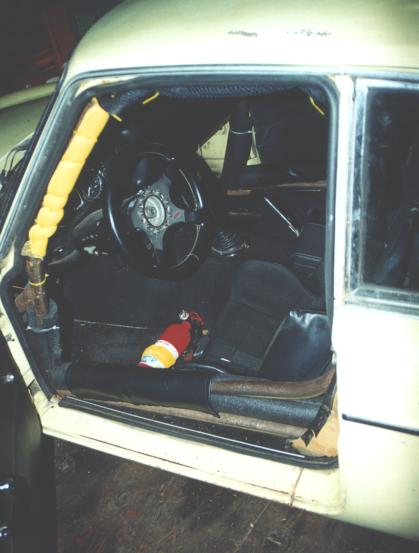

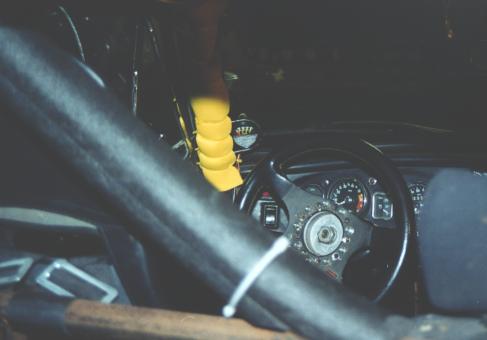

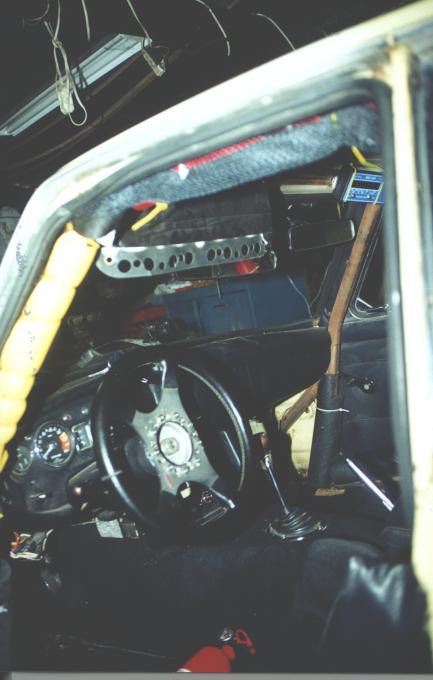

cockpit
oil guage

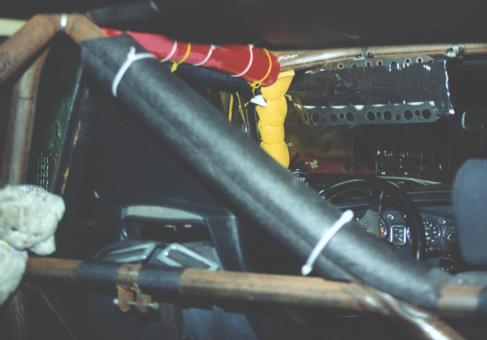

cockpit

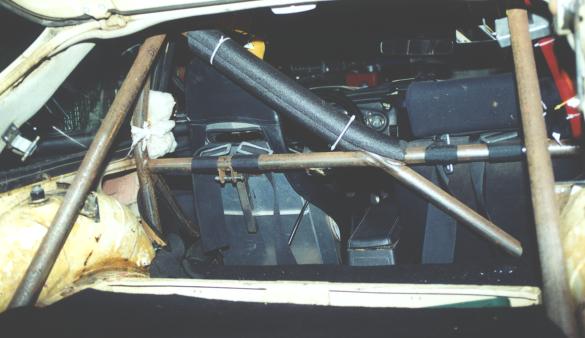

back cage

Engine:
Line bored
Venolia Pistons
Elgin Cam
nitrided crank and rods
balanced crank, rods and flywheel
Petronix ignitor
Mallory coil
High flow oil pump
ARP fasteners
spin-on oil filter
Late model water pump
large water pump pulley
plastic fan
Braided steel oil cooler lines
rebushed and rebuilt carbs
Ported head
Stock head
Low restriction exhaust system

Brakes:
braided steel brake lines
carbon metallic brake pads
carbomet brake shoes

Suspension:
Ron Hopkinson swaybar kit
Minator mag wheels
Racing tyres
spare wheels
Firestone SH30 street tires

Transmission
Overdrive 4 synchro

Lots of spare parts.

Note the grill badge. That is from the SSSCBDS, the car club my dad was in when he raced MGs in the 1950s. The acronym stands for South Shore (of Long Island) Sports Car and Beer Drinking Society

I've dyno tuned her a couple of times, first with a ported head, then later without. Either way she puts about 75 hp to the ground. According to Charlie Rockwell who used to dyno tune cars professionally, this is about 5-10 hp more than a normal stock MG.

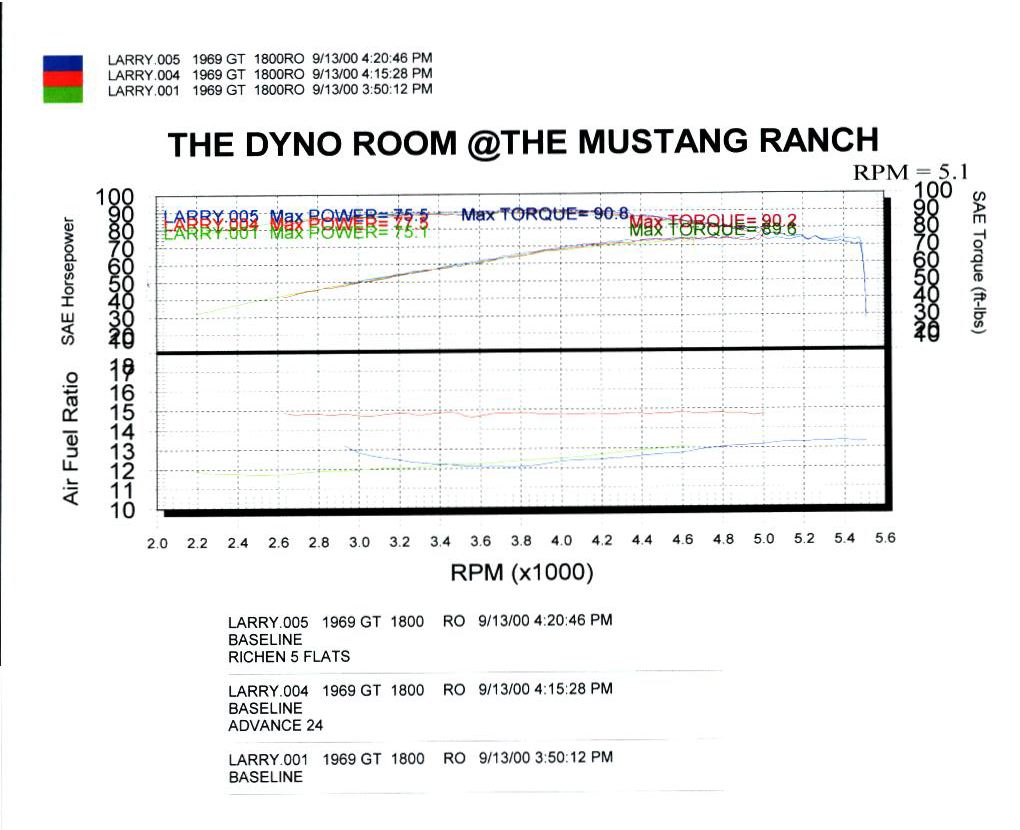

Dyno results with the ported head:
lday00/dyno000913.jpg
lday00/dyno000913a.jpg

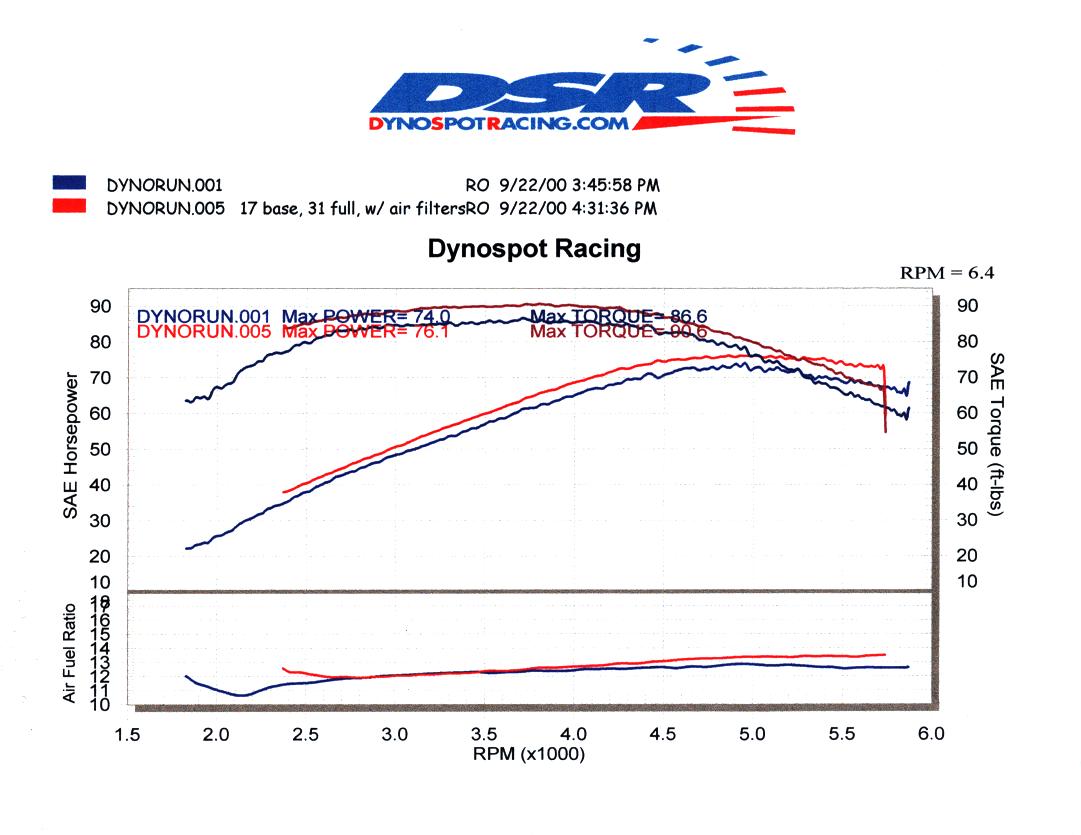

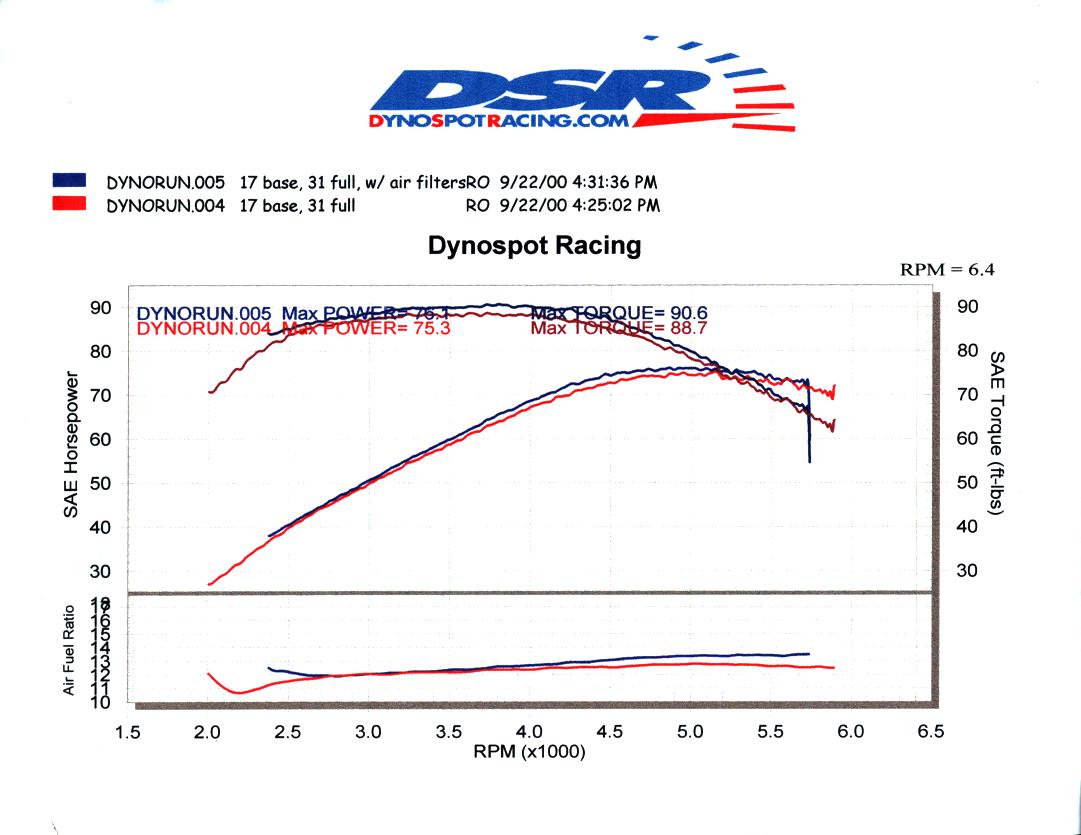

Dyno results with the stock cylinder head:
lday00/dynostockhdairfilter.jpg
lday00/dynostockhdoverall.jpg

Jasmine Rebuild 2002

Images of initial 2002 rebuild
Index of /jasmine/jaspix/jrb
Nov 16- cleaning engine compartment, header, degree wheel, painted motor
Nov 17- stepped washer for header, blower support mounting header manifold and compressor
Nov 18- pin spanner, mounting carb and blower oil res
Nov 19- front pulley, waterpump pulley, alternator, radiator hose
Nov 20- radiator spacers, radiator, final installation
Nov 21- adjusting mixture
Nov 27- damage to bonnet from rubbing on blower
Dec 04- R & R intake manifold, 3 wire alternator, guages
Dec 04- Why to make sure the header is aligned when you install it
Where I got the blower - HP High Performance Products

Index of /jasmine/jaspix/jasrebuild020825

Rallycross Nov 2002

pbase.com headon
Thunderhill RallyCross November 2002: index 3
Thunderhill RallyCross November 2002: index 2
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Thunderhill RallyCross November 2002
Pictures on red4est
Pictures of engine compartment after the rallycross



Jasmine has been entered in one race

but didn't quite make it the next year.

Aerial images of race tracks

Laguna Seca whole track
Laguna seca, image
Sears Point whole track
JPEG image spir 1,2,6,9
spir t 10,11,12,1
spir t 2,3,3a, 4, 5, 6
spir t 4,5,6,7,8,8a
spir t 12,1,9,10
spir t 1,2,6,9
JPEG image spir 2-6
JPEG image spir 4-8a
JPEG image spir t9,10,12,1
JPEG image spir t10-1
